GitOps for CloudBees CI (CasC)

In this lab we will practice GitOps with Configuration as Code (CasC) for CloudBees CI so that any Jenkins configuration changes you make in source control will automatically be updated in your CloudBees CI Team Master.

Instructor led video of lab.

  • You will create a Jenkins Pipeline job on your Team Master to automatically update the CloudBees CI configuration bundle for your Team Master.
  • You will add some new configuration to the CI configuration bundle in your forked core-config-bundle repository and then commit the changes to the master branch of your core-config-bundle repository that will in turn tigger a Jenkins Pipeline to update your CI configuration bundle.

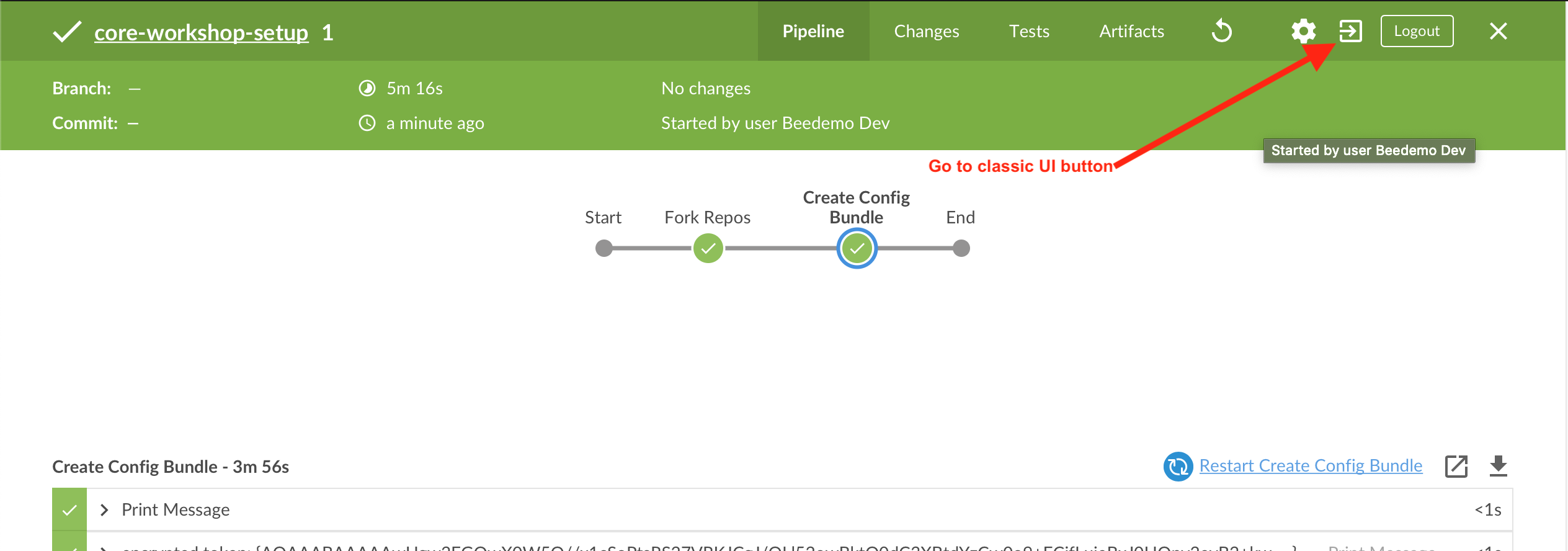

  1. If you are in the Blue Ocean UI, switch to the classic UI by clicking on the Go to classic button next to the Logout button in Blue Ocean navigation bar.

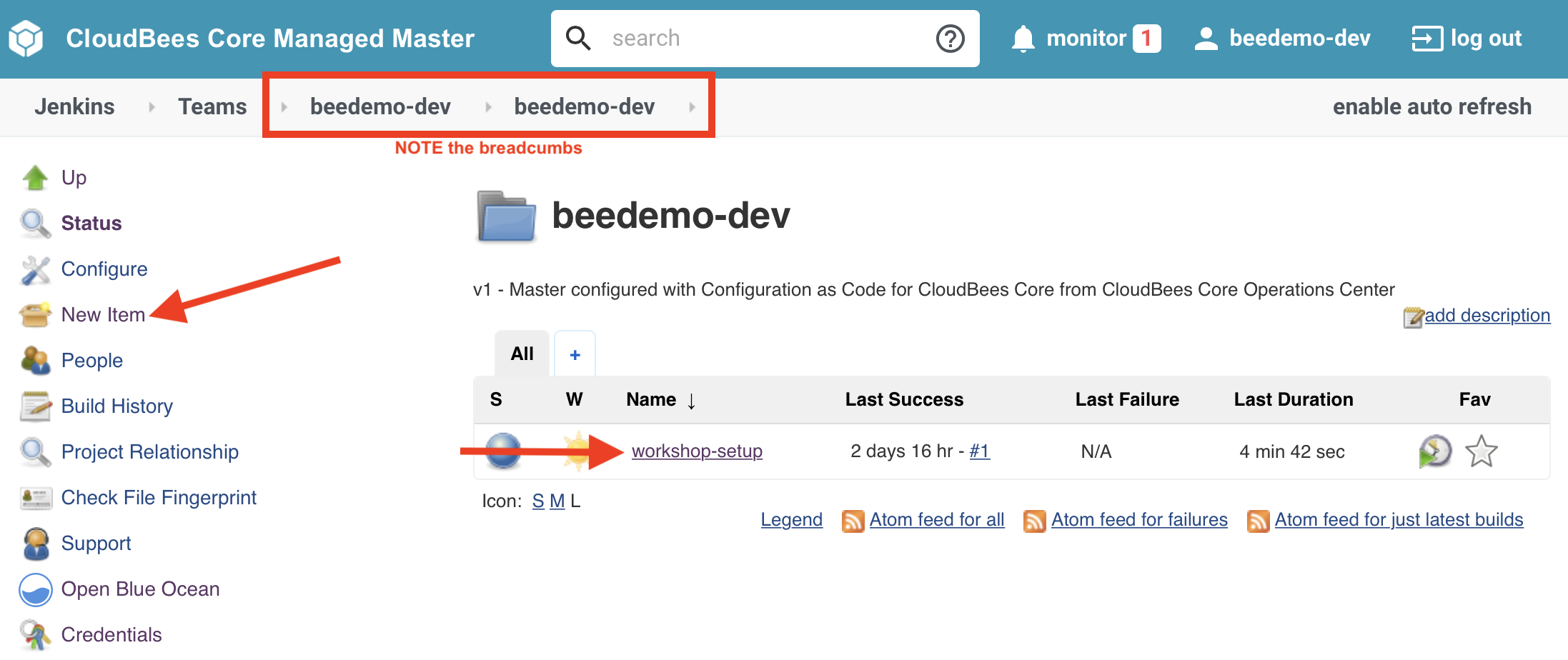

  2. Once in the classic UI on your Team Master, ensure that you are in the folder with the same name as your Team Master - you should see the core-workshop-setup and rollout-workshop-setup Pipeline jobs. This is important if you want to use Blue Ocean to visualize the Pipeline runs of Pipeline jobs you add to your Team Master, because only jobs under this folder will show up in Blue Ocean.

  3. Click on the New Item link in the left navigation menu - again, make sure that you are in the folder with the same name as your Team Master, and not at the root of your Team Master.

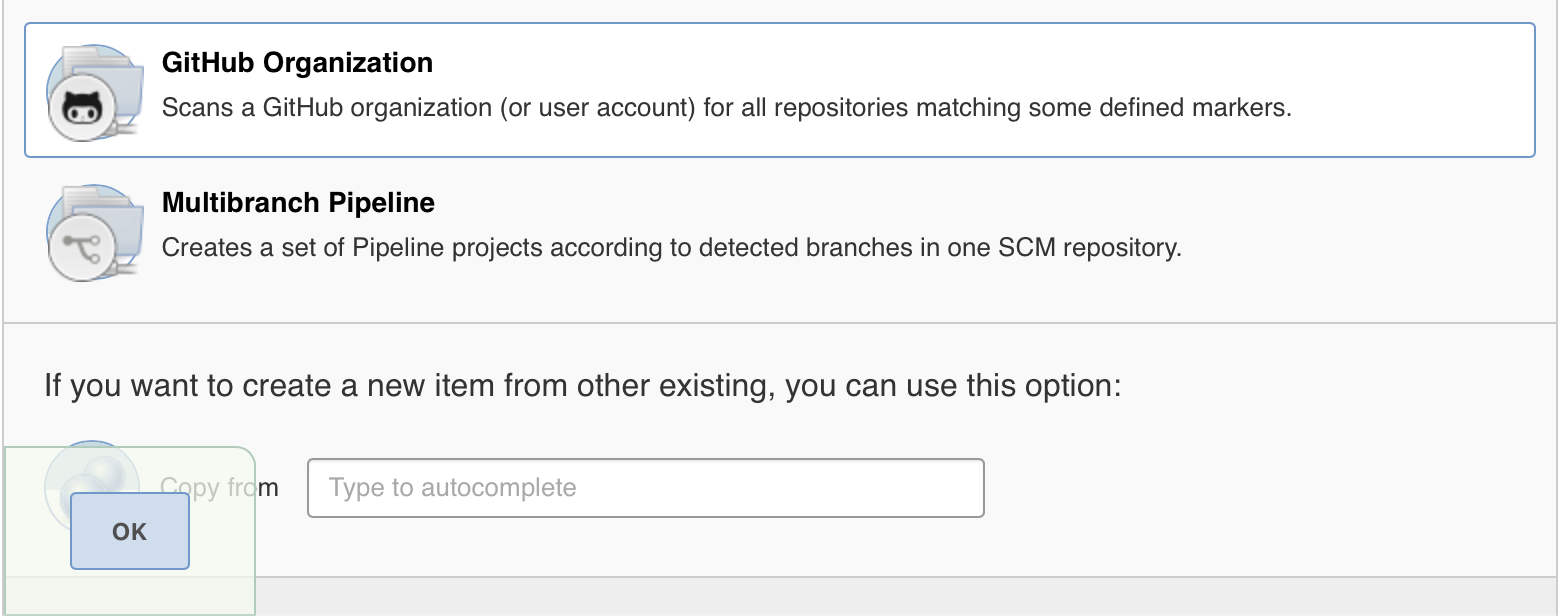

  4. Enter the name of the GitHub Organization you created for this workshop as the Item Name, select GitHub Organization as the item type and then click the OK button.

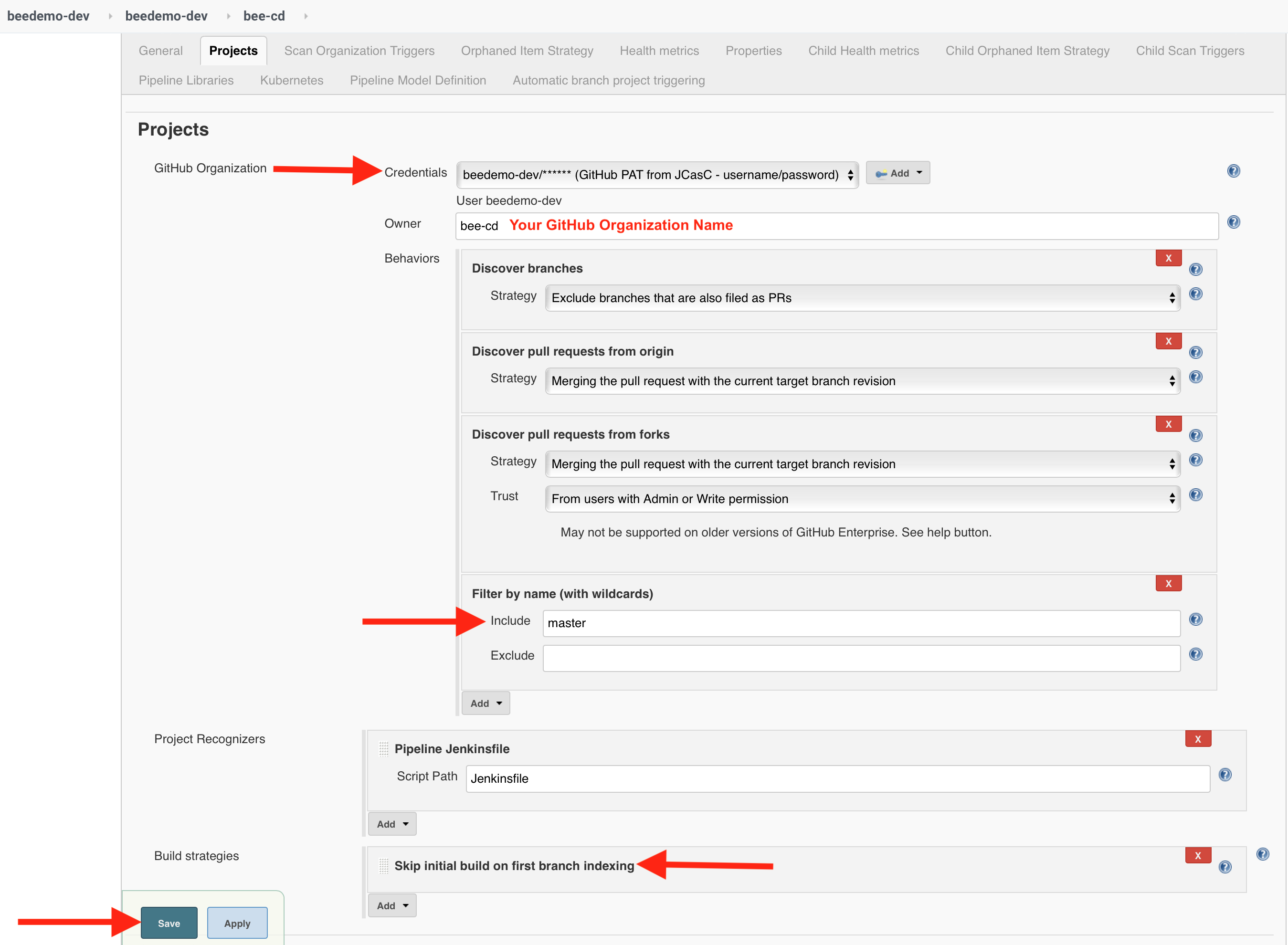

  5. On the next screen, select the Credentials with the GitHub PAT from JCasC - username/password description and displaying your GitHub username - this credential was created with the CloudBees CI CasC bundle applied to your Team Master by the core-workshop-setup job.
  6. The value of the Owner field is already filled in and matching the Item Name you entered above - ensure that it matches the name of the GitHub Organization you created for this workshop.

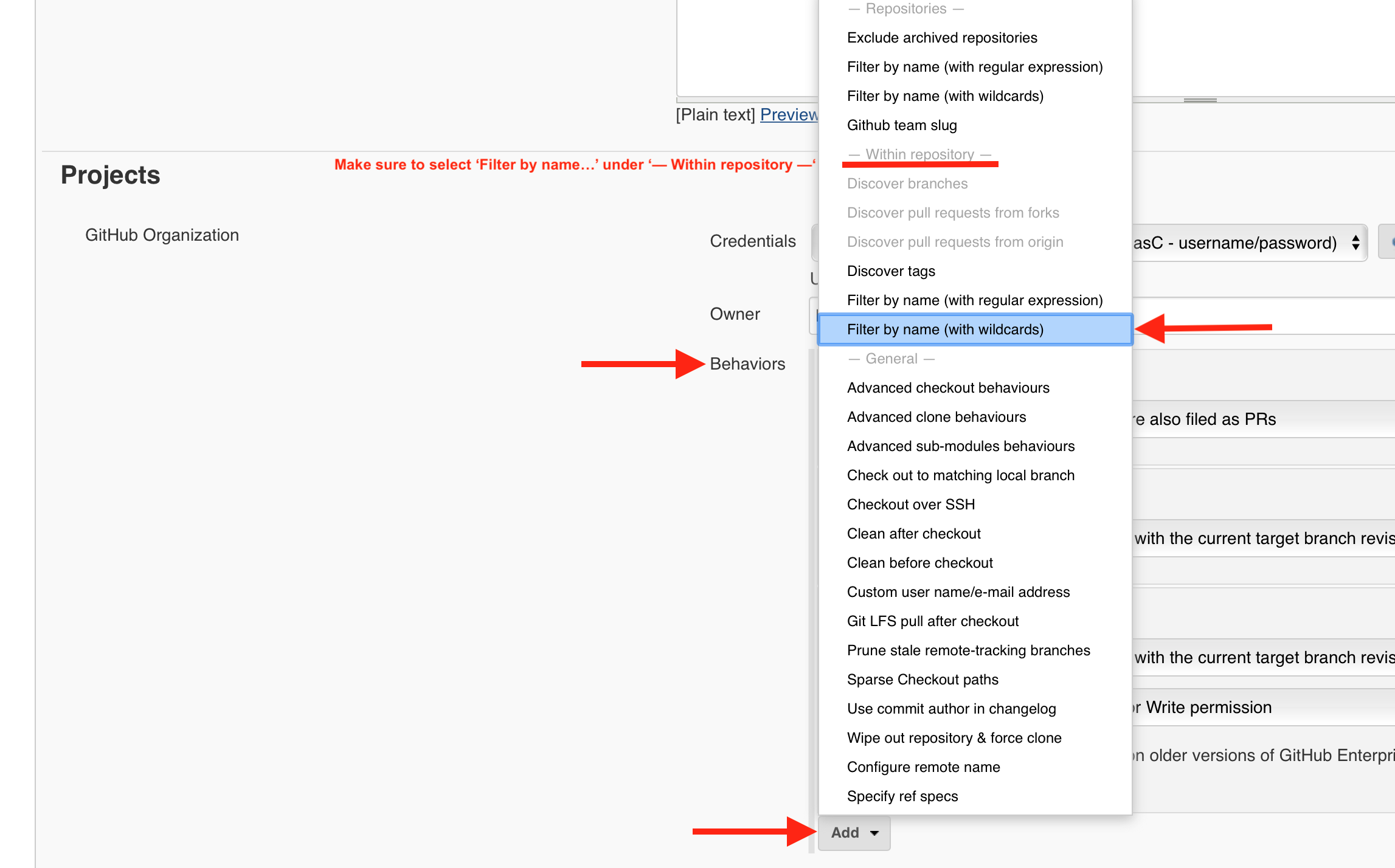

  7. Next, under the Behaviors section, click the Add button, select Filter by name (with wildcards) under - Within repository - and then enter master as an Include so that will be the only branch that gets scanned and built. IMPORTANT - make sure you select the Filter by name (with wildcards) option UNDERNEATH the - Within repository - section of the Behaviors select list.

  8. Click the Build strategies Add button and select Skip initial build on first branch indexing from the drop-down.
  9. Finally, click the Save button.

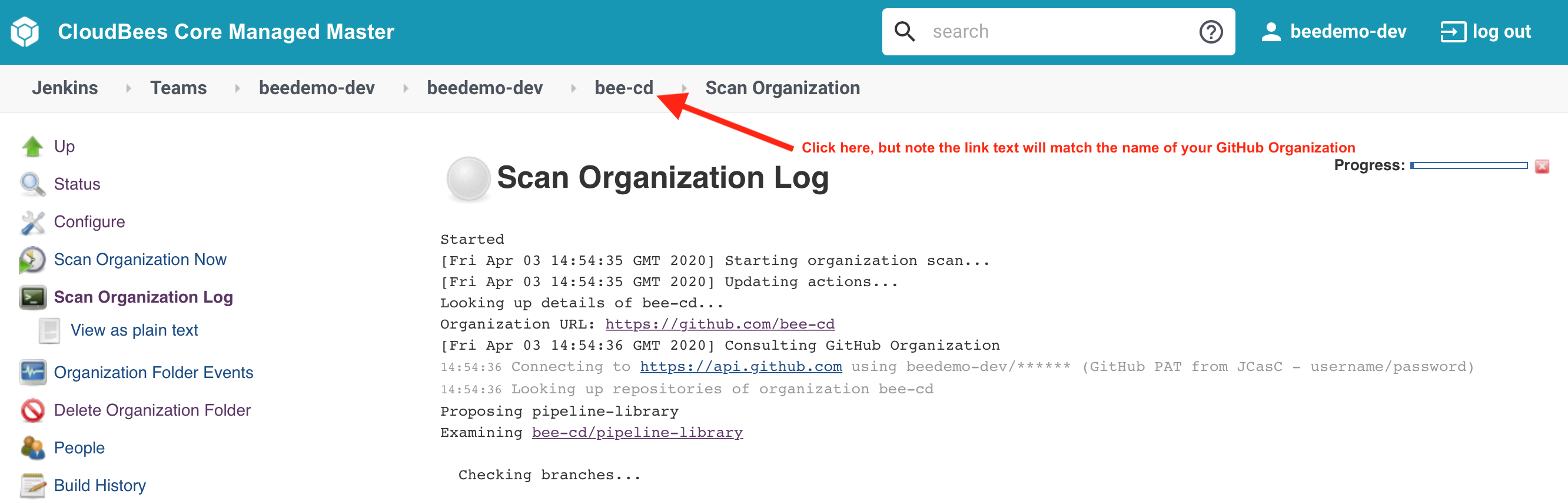

  10. After you click the Save button the Organization Folder Pipeline project will scan every branch of every repository of your GitHub Organization creating a Pipeline job for each branch where there is a Jenkinsfile (or in this case, just the master branch) and creating a Pipeline Multibranch project for each repository where there is at least one branch containing a Jenkinsfile. Once the scan is complete, click on the breadcrumb link that matches your GitHub Organization name - just to the left of Scan Organization.

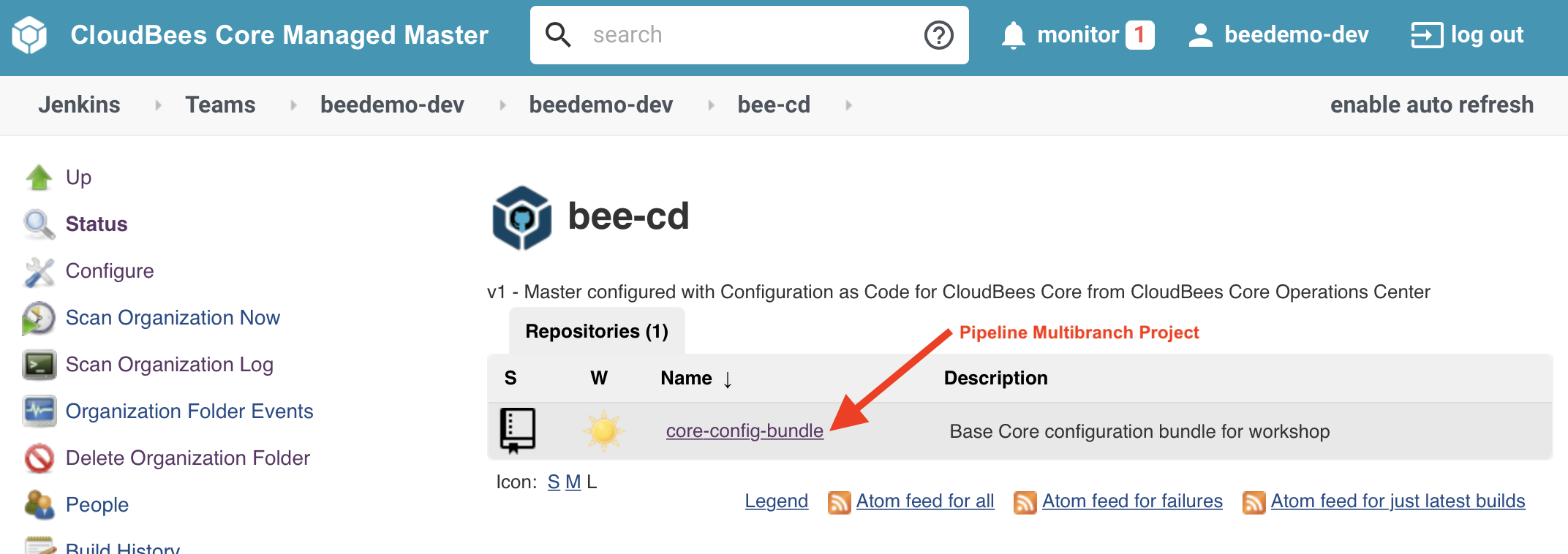

  11. Click on the link of the Jenkins Multibranch Pipeline project for your fork of the core-config-bundle repository.

  12. Next, navigate to your fork of the core-config-bundle repository on GitHub by clicking on the GitHub link in the left navigation menu.

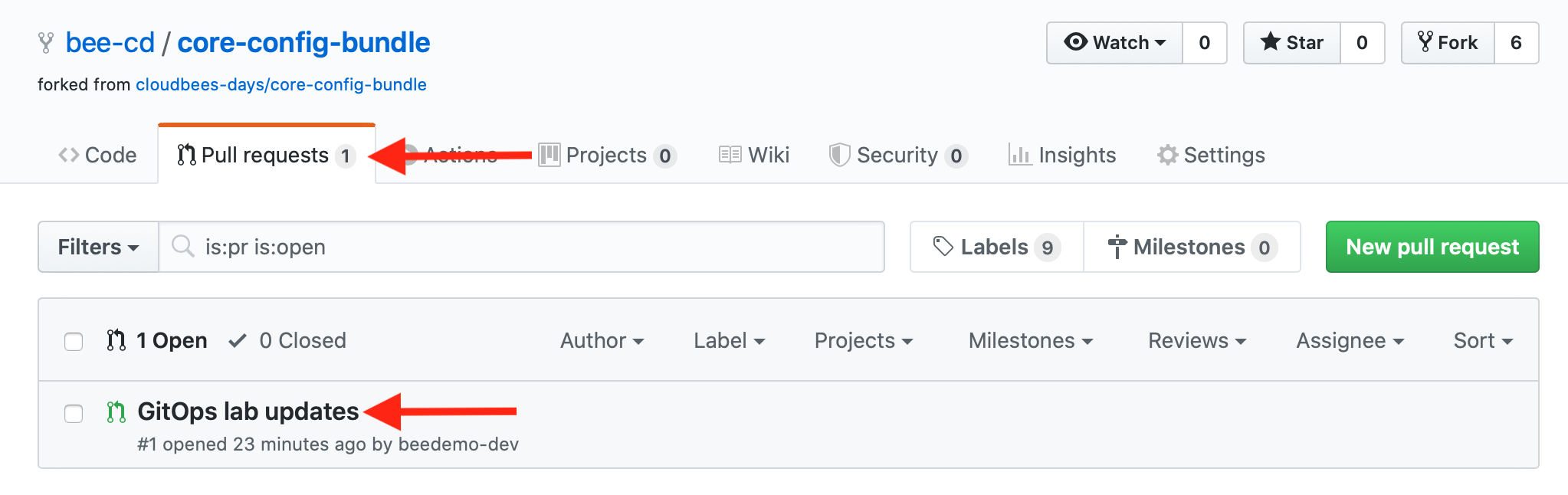

  13. In GitHub, click on the Pull requests tab and then click on the GitOps lab updates pull request.

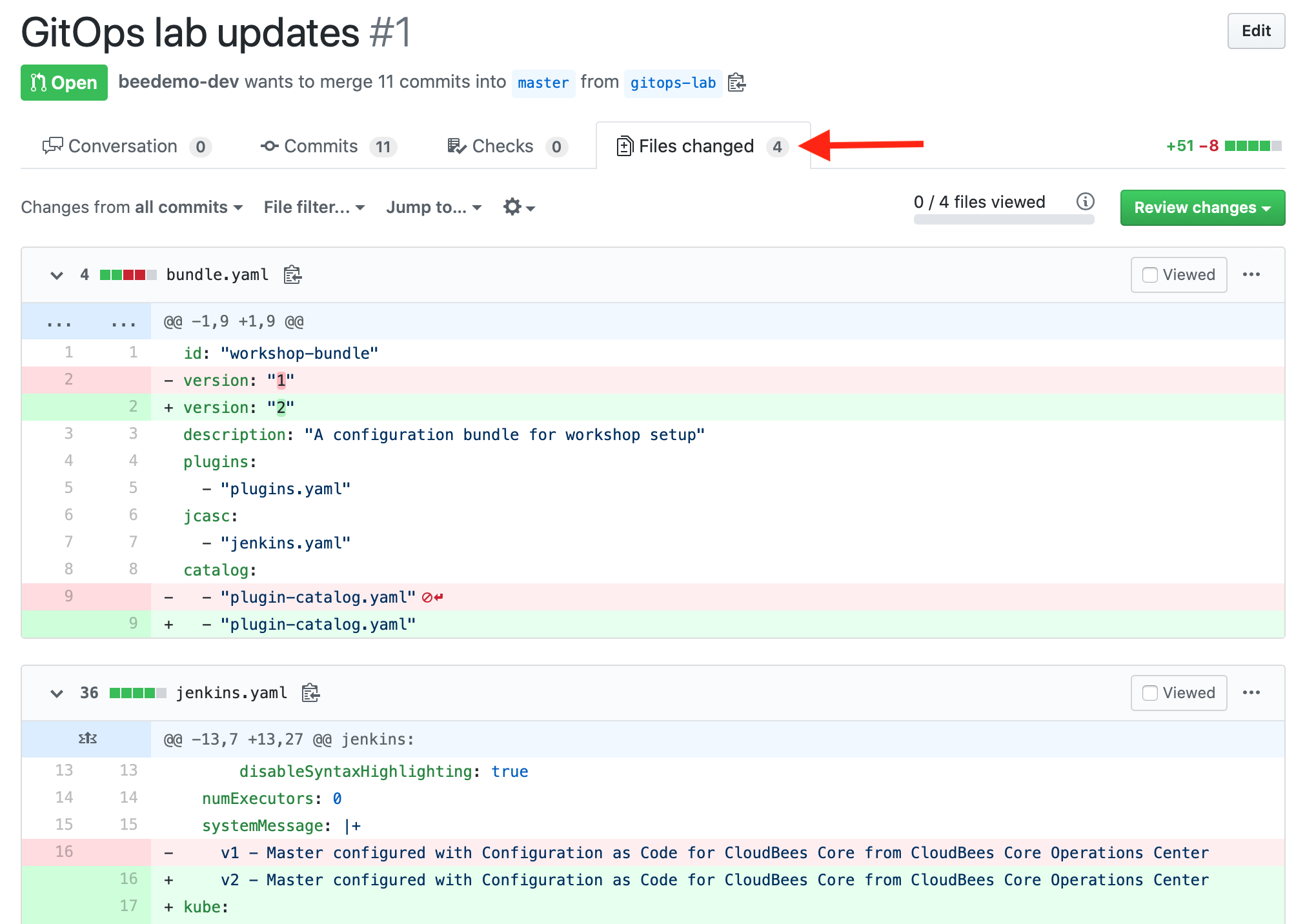

  14. To quickly review the changes that will be made to your CloudBees CI configuration bundle for your Team Master, click on the Files changed tab and scroll down to see the differences.

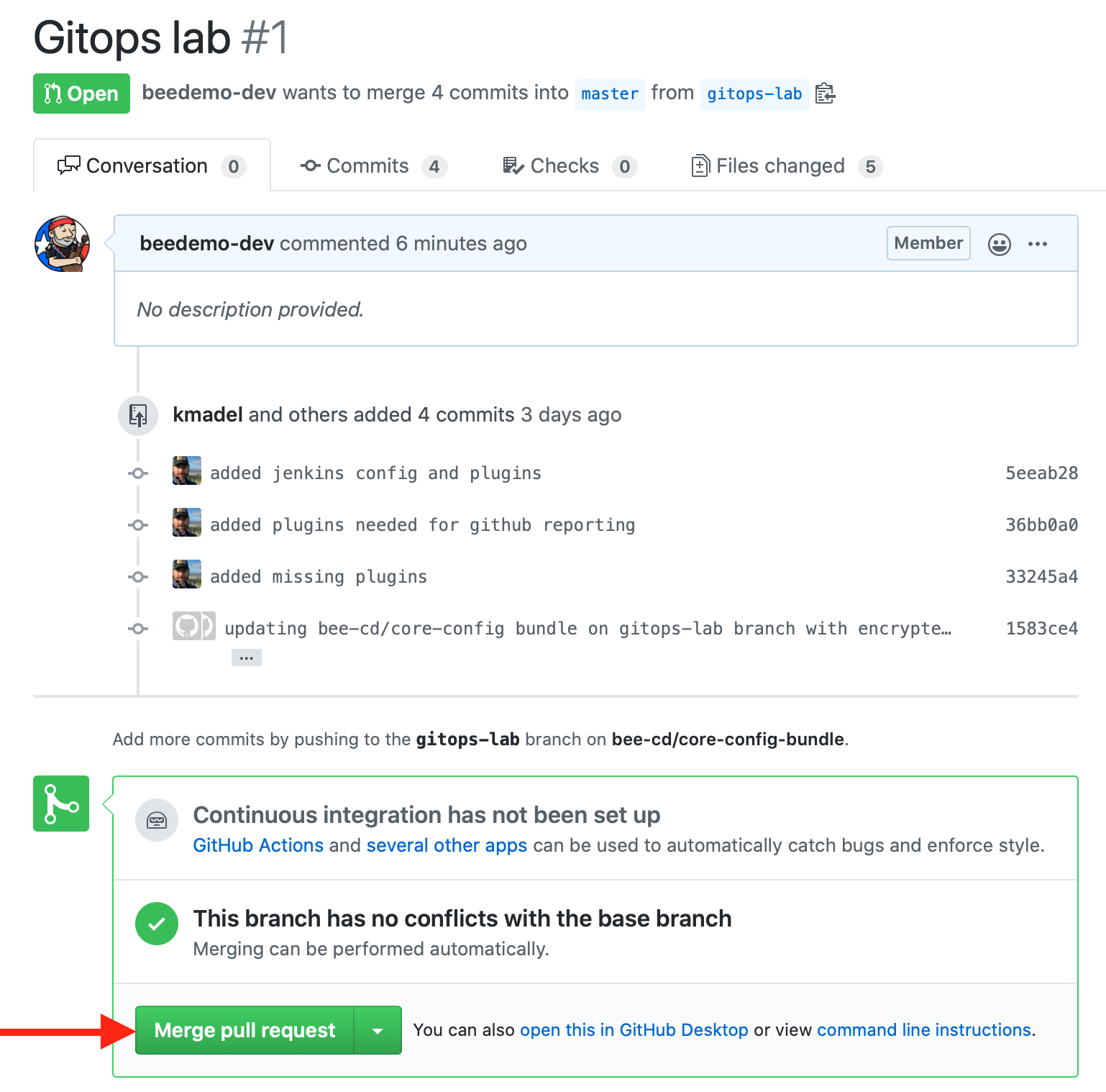

  15. Once you have reviewed the changes, click back on the Conversation tab and then click the green Merge pull request button and then the Confirm merge button.

  16. Now navigate to the master branch Pipeline job of the core-config-bundle Multibranch Pipeline project on your Team Master.

  17. As the job to update your CI CasC bundle is running, let’s explore the configuration changes in more detail. Navigate back to your fork of the core-config-bundle repository on GitHub and open the jenkins.yaml file.

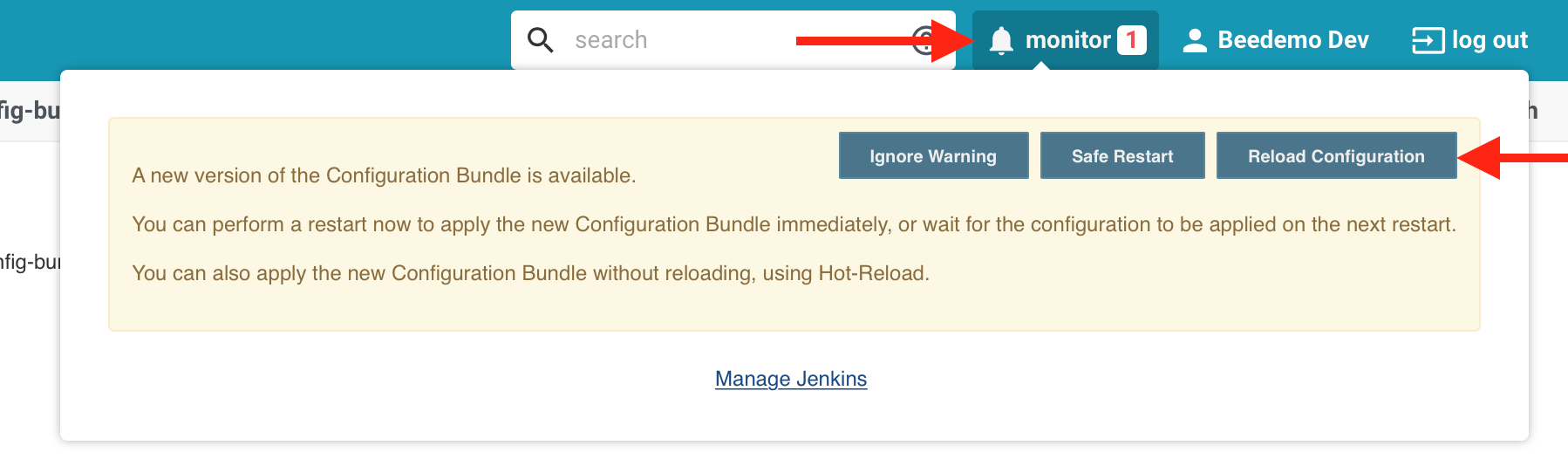

  18. Navigate back to your CloudBees CI Team Master. Shortly after the Pipeline job completes you will see a new monitor warning. Click on the monitor link of your Team Master and you will see that a new version of the configuration bundle is available - click on the Reload Configuration button and on the next screen click the Yes button to apply the updated configuration bundle. NOTE: If you do not see the Reload Configuration button then click the Safe Restart button.

  19. Among other configuration changes, you will now see a link for Pipeline Polices in the left navigation menu, an updated system message and CloudBees CI Master Hibernation has been configured for your Team Master.

NOTE: The Build strategies configuration for Pipeline Organization Folder and Multibranch projects are provided by the Basic Branch Build Strategies plugin and by selecting the Skip initial build on first branch indexing strategy we avoid an unnecessary build when we first create the Organization Folder project above.

For instructor led workshops please returns to the workshop slides

Otherwise, you may proceed to the next lab: Pipeline Template Catalogs or choose another lab on the Main Lab Page.
